API美標球閥產品特點:
適用介質:水、氣、油品、天然氣和酸堿腐蝕性介質。
適用溫度:-196~350℃
驅動方式:手動、氣動、電動、液動等。

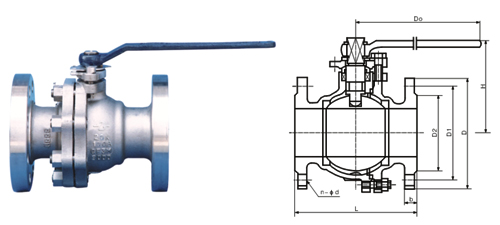

美標球閥主要外形及連接尺寸表
公稱 |
公稱 |
d |
L |
D |
D1 |
D2 |
b |
f |
Z-Φd |
H |
W |
Class |
1/2" |
13 |
108 |
89 |
60.5 |
35 |
11.5 |
1.6 |
4-16 |
79 |
135 |
3/4" |
19 |
117 |
98 |
70 |
43 |
11.5 |
1.6 |
4-16 |
84 |
135 | |
1" |
25 |
127 |
108 |
79.5 |
51 |
12 |
1.6 |
4-16 |
95 |
170 | |
1-1/4" |
32 |
140 |
117 |
89 |
64 |
13 |
1.6 |
4-16 |
103 |
170 | |
1-1/2" |
38 |
165 |
127 |
98.5 |
73 |
15 |
1.6 |
4-16 |
111 |
200 | |
2" |
51 |
178 |
152 |
120.5 |
92 |
16 |
1.6 |
4-19 |
120 |
200 | |
2-1/2" |
64 |
190 |
178 |
139.5 |
105 |
18 |
1.6 |
4-19 |
153 |
300 | |
3" |
76 |
203 |
190 |
152.5 |
127 |
19 |
1.6 |
4-19 |
163 |
300 | |
4" |
102 |
229 |
229 |
190.5 |
157 |
24 |
1.6 |
8-19 |
182 |
400 | |
5" |
127 |
356 |
254 |
216 |
186 |
24 |
1.6 |
8-22 |
260 |
500 | |
6" |
152 |
394 |
279 |
241.5 |
216 |
26 |
1.6 |
8-22 |
280 |
800 | |
8" |
203 |
457 |
343 |
298.5 |
270 |
29 |
1.6 |
8-22 |
- |
1100 | |
Class |
1/2" |
13 |
140 |
95 |
66.5 |
35 |
15 |
1.6 |
4-16 |
79 |
135 |
3/4" |
19 |
152 |
117 |
82.5 |
43 |
16 |
1.6 |
4-19 |
84 |
135 | |
1" |
25 |
165 |
124 |
89 |
51 |
18 |
1.6 |
4-19 |
95 |
170 | |
1-1/4" |
32 |
178 |
133 |
98.5 |
64 |
19 |
1.6 |
4-19 |
103 |
170 | |
1-1/2" |
38 |
190 |
156 |
114.5 |
73 |
21 |
1.6 |
4-22 |
111 |
200 | |
2" |
51 |
216 |
165 |
127 |
92 |
23 |
1.6 |
4-22 |
120 |
200 | |
2-1/2" |
64 |
241 |
190 |
149 |
105 |
26 |
1.6 |
8-19 |
153 |
300 | |
3" |
76 |
283 |
210 |
168.5 |
127 |
29 |
1.6 |
8-22 |
163 |
300 | |
4" |
102 |
305 |
254 |
200 |
157 |
32 |
1.6 |
8-22 |
182 |
400 | |
5" |
127 |
381 |
279 |
235 |
186 |
35 |
1.6 |
8-22 |
260 |
500 | |
6" |
152 |
403 |
318 |
270 |
216 |
37 |
1.6 |
12-22 |
280 |
800 | |
8" |
203 |
502 |
381 |
330 |
270 |
42 |
1.6 |
12-25 |
- |
1100 |
